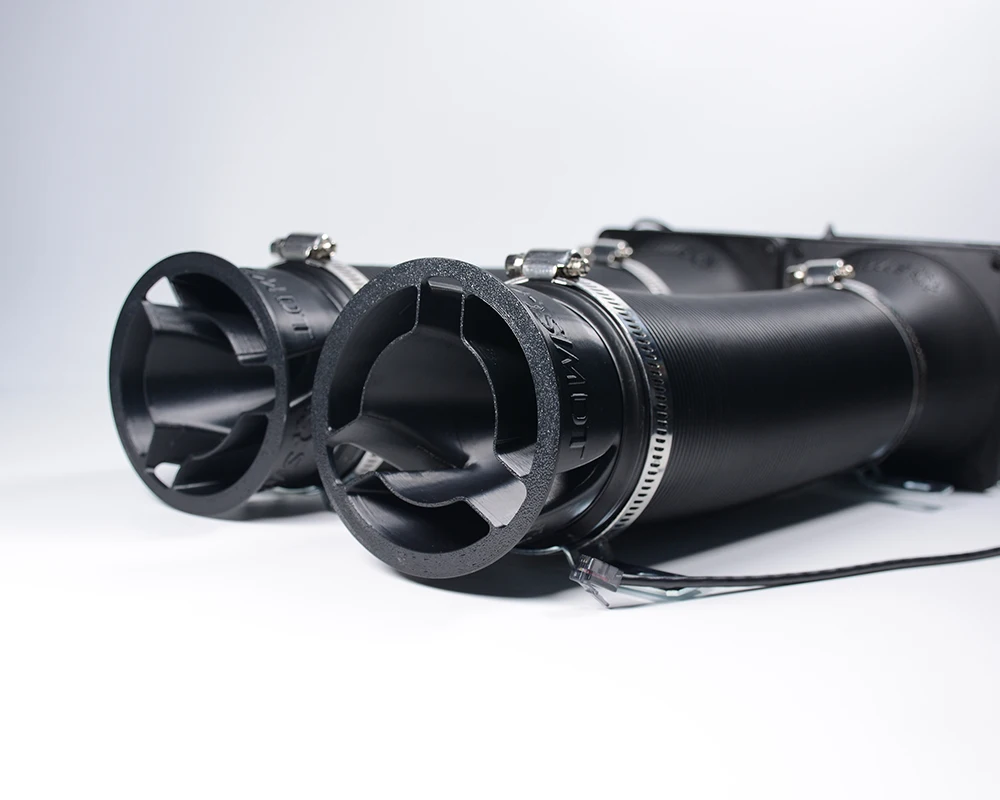

Universal Plug and Play Wind Simulator

Description

Turbine Ⅱ Sim Racing Wind Simulator for Logitech G29 Thrustmaster T300 for PC Racing Games MOZA FANATEC for PS5 GT7

Material:

• PVC corrugated pipe
• The booster and air outlet are ABS or PLA (3D printing);

Features:

• Since the air discharged by the axial fan has high rotational energy, the booster kit with spiral structure can well guide this rotating airflow and continuously accelerate the booster, and will not cause too much loss of air volume even through long and curved pipes;
• The middle section of the corrugated pipe can guide the air volume brought by the booster kit to any direction and can be freely installed in any position. Note that even various bends will not cause too much loss of air volume;
• According to Bernoulli’s principle, the faster the air speed, the lower the pressure , when the airflow flows through a narrow place, the airflow pressure will decrease, which is the so-called Venturi effect. The carefully designed air outlet kit can compress the airflow and increase the wind speed, thereby absorbing additional air around to increase the air volume;

Parameters:

• Wind speed: 8m/s (the wind speed of a household fan is about 4.5m/s, for reference);
• Noise level: 60 decibels;
• Voltage: 110V-220V;
• Current: 1.6A;

Dimensions:

• Fan size 120x120x38mm;
• Overall height: 400mm;
• PVC pipe can be stretched to 900mm (inner diameter 76mm);
• Manual measurement may have errors;

Accessories:

• Controller X1;
• Power supply X1;
• USB data cable X1;
• Instruction manual X1;
• M6x16 screws X4;

• M6T nuts X4;
